LED On Vehicle Display

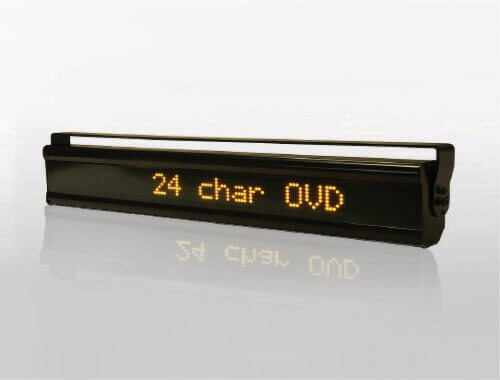

The Ferrograph On Vehicle Display (OVD) is a compact vehicle mounted passenger information display specifically designed for bus, train and tram applications. Displays are available in 16, 20 or 24 character versions with an overall character height of 38.8mm.  Characters are displayed in 8 pixel high fonts allowing partial descenders to be displayed

Designed specifically to display next stop information on bus, rail and tram applications.

  • Integrate into new installations at design stage
  • Retro fit into existing system.

  Key Product Features

  • 1 Line with 16, 20 or 24 character option.
  • 38.8mm Character height with 8 pixel high characters allowing partial descenders to be used.
  • 3.8mm LEDs with 5mm pitch
  • Amber high-brightness LEDs allow daylight viewing.
  • 24V DC Operation.
  • Communication via RS232 or RS485 using common bus and rail protocols
  • Extruded Aluminium enclosure with tough polycarbonate front screen.
  • IP44 rated enclosure.
  • A custom design service is available for all mounting and installation locations
  • Dimensions: Approx 1 Line x 16 Ch:  524mm(w) x 104mm(h) x 66mm(d) 1 Line x 20 Ch:  644mm(w) x 104mm(h) x 66mm(d), 1 Line x 24 Ch:  766mm(w) x 104mm(h) x 66mm(d)
  • Datasheet available upon request.
