Bus Interchange LED Display

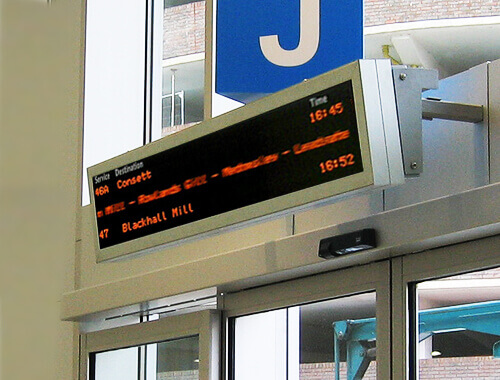

Ferrograph LED Interchange Displays have been specifically designed to display both scheduled and real time passenger information in modern, busy, transport interchanges.

Display enclosures are provided with IP65 ingress protection, and are slim yet rugged, typically with IK07 impact rating.

Key Product Features

  • Fabricated aluminium enclosure with polyester poweder coating to customer specified RAL number.
  • 6mm grey tinted polycarbonate screen.
  • 6, 9, 12 & 18 lines of text with 45 characters wide per line.
  • 24 & 30 lines of text with 60 characters wide per line.
  • Font constructed in line with latest DDA and RTIG recommendations.
  • 39mm character height with 9 pixel high characters allowing full descenders to be used.
  • Amber ultra-bright LEDs allow daylight viewing.
  • The IP65 / IK7 rated enclosure.
  • A design service is available for custom mounting bracket and installation requirements.
  • Environmental control, impact detection and remote diagnostics capabilities.
  • Optional 58mm clock in HH:MM:SS format.
