Touch Screen Kiosk

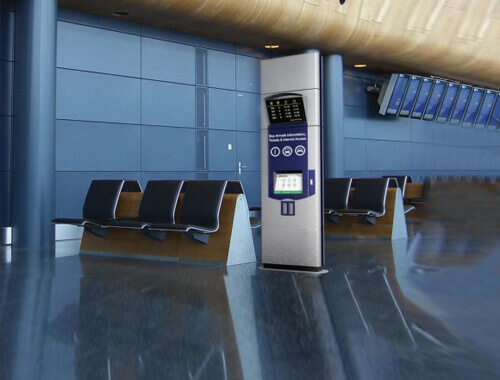

The Ferrograph rugged Interactive InfoPoint provides real-time digital information to the traveling public in outdoor and unsecured areas.  Next bus and train service information is combined with a local Point of Interest and Journey Planning services.

Designed specifically to display bus and train service information together with interactive Journey Planning, typical applications include:

  • Transport interchanges.
  • Bus stations and high use stops.
  • Railway platform or concourse applications.
  • Ideal for Tramstop or LRT applications.

Key Product Features

  • 19” Transflective TFT, UXGA 1600×1200 resolution
  • Sunlight viewable TFT.
  • Next bus or train departure or arrival information with configurable next 3, 6 or 12 services.
  • DDA compliant text.
  • 17” Transflective TFT, SXGA 1280×1024 resolution.
  • Optional 32″ TFT rear mounted poster display .
  • Touch-screen using Projected Capacitive Technology (PCT).
  • Secure Web based browser with on-line Journey Planning and approved website access.
  • Tough stainless steel enclosure with laminated safety glass front screen, anti-glare / anti-reflective surface treatment.
  • The IP65 rated enclosure provides protection against both the weather and occasional vandalism.
  • A custom design service is available for all mounting and installation locations.
  • Optional environmental control including impact detection and diagnostic control is available
  • Datasheet available upon request.
